Product Description：

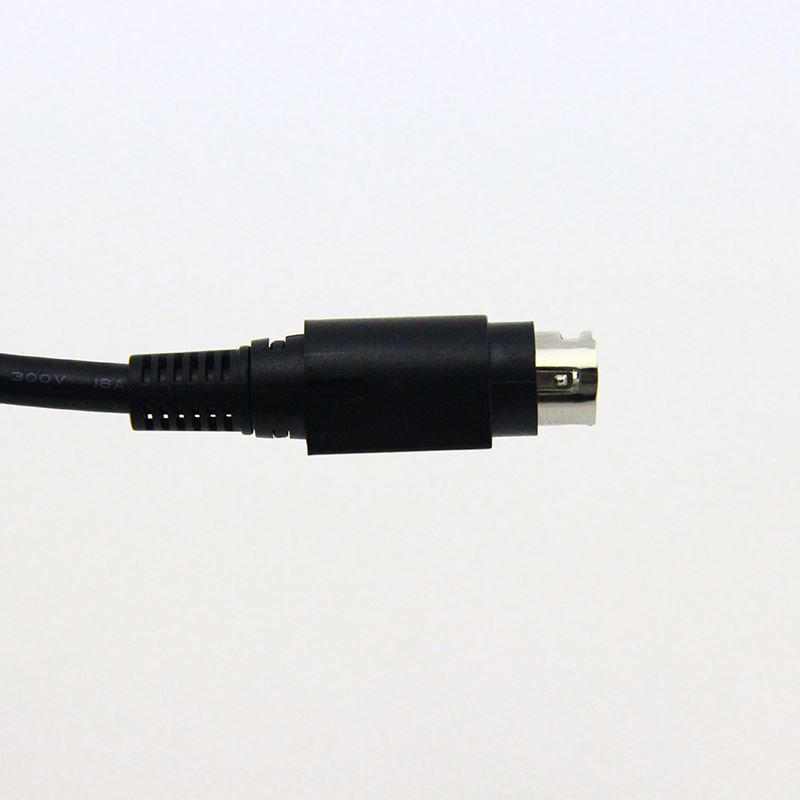

1. The power din 4 pin female to DC5521 male cable is customized for Power Supply. There is a ferrite core on the cable nearby DC 5.5x2.1mm end. It can filter out most of the clutter. Let the current be supplied to the equipment steadily.
2. The two connectors have been injection molded. It is very firm and durable. The size of the plug can be changed if you need other size. The color is black and others are available. The cable looks like very long. But you do not worry the resistance. Because the wire gauge is 16AWG. It can bear 6.3A current.
3. The cable adapts 1185 cable. So it has spiral shield. It can also shield some electromagnetic induction.
4. The female power din 4 pin to dc 5.5mm x 2.1mm cable is adapter cable. Similar cable is available. For example: 4 pin power din male to female cable, dc5521 male to female cable.
Product Specification
side connector 1 | Power din 4 pin female |
side connector 2 | DC5521 male |
cable | 1C*16AWG+1S |
wire Length | 3.5M |
Craft | Injection |
OEM or ODM | yes |
jacket Color | Black |
electronic Test | 100% test |
a. Fully shielded to protect against external signal interference and connect very tight.
b.Connector with Nickel Plated for corrosion resistance ensuring consistent and reliable conductivity
after a few years being used still can keep very slippery and smooth of the connector facial.
c. Molded-strain relief construction for flexible movement, durability, and fit, if Assembly style, ABS shell is even more strong to keep stability.
d. Guarantees 100% compliance with same Power din or DC 5521 connector's specifications
