Power din to 5525 DC 5V 2A cable
1. Product introduction

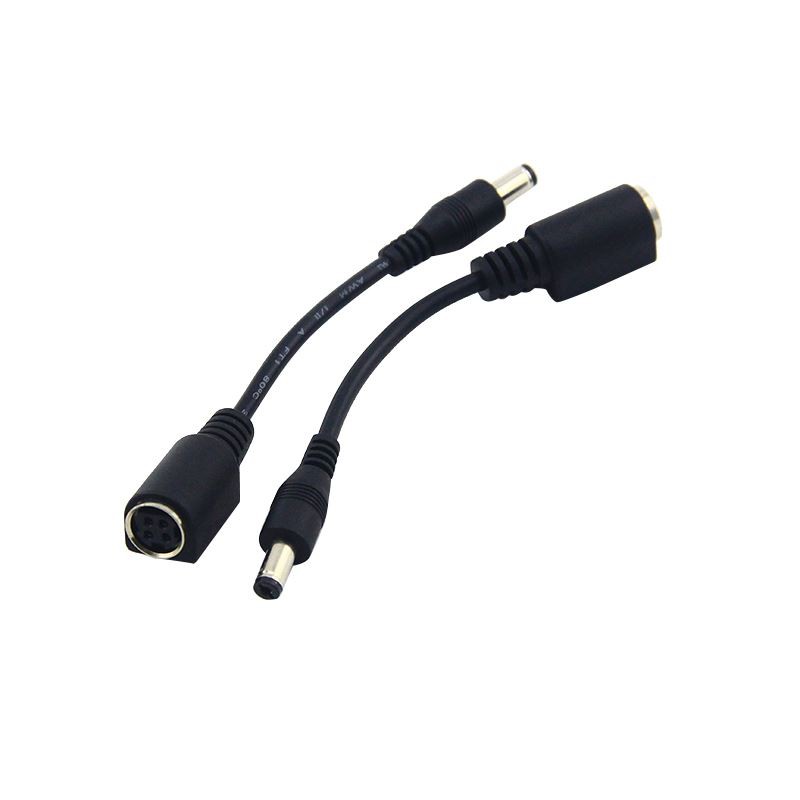

The DC 5.5*2.5mm connector (or DC 5.5*2.5mm plug) is one common type of connector that is an electrical connector (plug) for supplying direct DC current power. The power din connectors (plug) is either 3 or 4 thicker pins and a slightly larger mating shell, it is snap and locked DC power connector and looks similar to Mini-DIN connectors. This product is male 5.5*2.5mm DC jack to female power din 4P sockets DC power cable. The power DC types cable usually have higher ratings, both for current and voltage, this DC power cord cable is maximum current ratings commonly vary from up to 5 A. The inner conductor of DC 5.5*2.5mm plug is the positive (+) pole of DC power, and the outer conductor of DC 5.5*2.5mm plug is the negative (-) pole of DC power. The Pin1 and Pin2 of the power din female socket is the positive (+) pole of DC power, The Pin3 and Pin4 of the power din female socket is the negative (-) pole of DC power.
Features:
1. Compared to AC power plugs and sockets, DC connectors have many more standard types that usually are used for different devices.
2. The female power din sockets can be locked with male power din 4p connector.
3. DC power is widely used in low voltage applications such as charging batteries, automotive applications, aircraft applications and other low voltage, low current applications. All solar panels nowadays produce DC power.
4. Short length is easy to use and stock.
Product specification
Product Name | Power din to 5525 DC 5V 2A cable |
Type | DC power cable |
Length | 0.1m |
Power | Up to 5A current |
application | DC charging |
packaging | Poly bag |
Note: please must be check these information before you order from us.
1. The + and – pole of most device is same as our product, but some devices, and their power supplies, use negative inner and positive outer.
2. DC Connector size does not usually indicate the voltage. It is not possible, except for some proprietary connectors, to reliably infer any information on power parameters (current, voltage, polarity, even whether AC or DC) by examining the connector.
3. Although the power din plug or sockets looks like mini din plug or sockets, but the power din does not mate with any of the standardized Mini-DIN connectors.
