Product Description

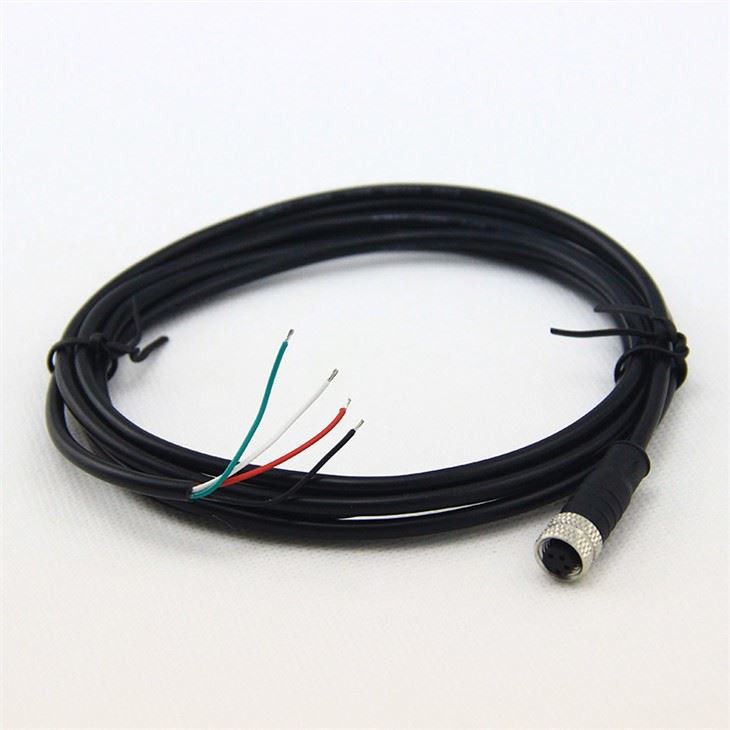

M8 Socket 4P female to open cable is a waterproof connector cable. We adopts Part Number:M8A1304AFLBG1 to make it. This cable has 4 wires inside(red,white,green,black). Yes, the colors look like USB definition. In fact, it is not USB cable. The connector is waterproof and it is resistant to oil and cold. The performance is very stable. The M8 4 pin connector adopts threaded connection. You can quickly install it.
You can directly solder it on your PCB board or other connector.Because the open end has bend tinned.
For M8 series, here are 3 to 8 pin for you choose. The mold is same. If you need similar connector or cable, which is not available on our website, you can contact us.
Product Specification
Connector A | M8 4 pin female |
Connector B | Open |
Part Number | M8A1304AFLBG1 |
Wire gauge | 4C*24AWG |
Rated current | 1A |
Rated voltage | 30V |
Material | Bare copper and PVC |
Production Process | Injection |
Length | 100CM |
OEM | Available |
Test | 100% test |
